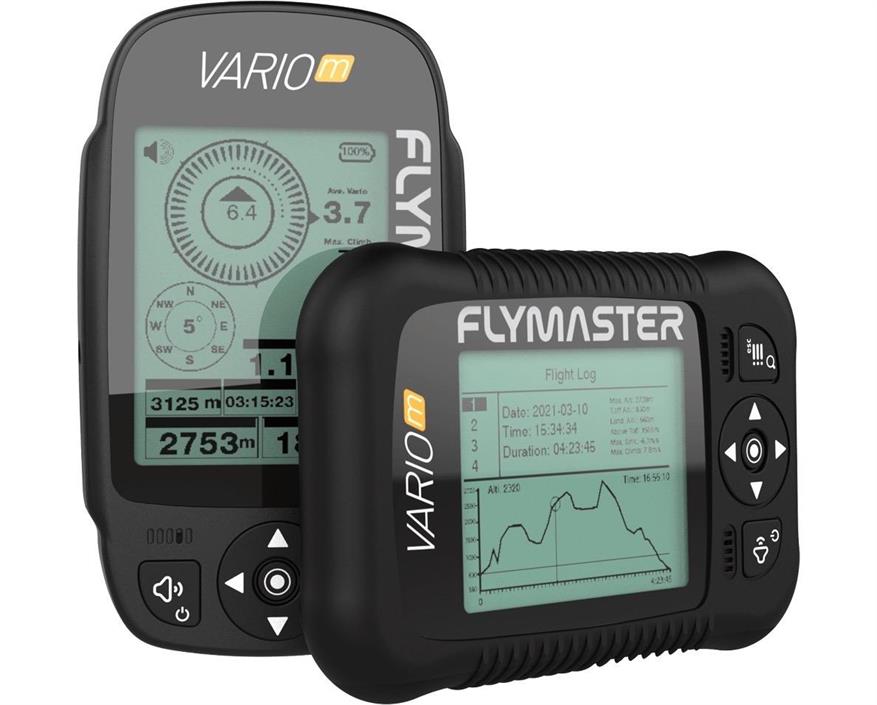

Flymaster Vario Gps M (WITH FLARM BEACON)

The GPS M is the ideal instrument for flying non-competition XC flights.

7 800,00 SEK


Köp

  • Artnr: 50432
  • Finns i lager

Beskrivning av artikel

Main Hardware Characteristics


Display Resolution (High Contrast Grey Scale) 320x240 pixels
Screen size (true viewing area) 76x57 mm
Battery Capacity (Lithium-Ion) 2900 mAh
Autonomy Learn more Approx. 27 hours
Size 152x90x16 mm (Length x Width x Thickness)
Weight 200 gr
GPS 72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB C Connection Allows connection to the PC to download/upload Flight Data, Airspaces Data, etc
Battery Charging From wall adapter, car adapter or standard usb port
Micro SD slot Supports cards to 16 GB, Optional pre-loaded 16GB SD card with airspace, ground data and maps now available.
6 Axis accelerometer and magnetometer Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)

Interface Features


User definable pages, 8 in portrait and 8 in landscape mode (each page can be draw using FIM software). 16
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, …) 11
Configurable data field elements (User can change size, border, title, Font, ...) 61
Page Trigger Events (page switches automatically if a specific event occurs)
  • Airspace warning
  • Entering thermal
  • Transition (leaving thermal)
  • Arriving at turnpoint
  • Power up
Multi lingual interface
  • English
  • French
  • German
  • Spanish
  • Italian
  • Polish
  • Slovenian
  • Turkish
  • Portuguese
Configurable audible alerts
  • Airspace
  • Turnpoint complete

Variometer/Altimeter Features


  • Buzzer/near thermal sound.
  • Ultra sensitive Variometer with 10 readings per second and 10 cm resolution.
  • Configurable vario digital filter and integration values.
  • Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….).
  • 6 Sound Levels (configurable by menu, or using a key).
  • Automatic mute, keeps vario silent until takeoff.
  • Altitude adjustment using QNH.
  • Automatic altitude adjustment from GPS.
  • 2 independent altimeters.

Memory Features


  • 3D flight logger IGC format.
  • Storage for >300000 track points.
  • Up to 248 flights.
  • 448 Waypoints.

3D Airspace


  • Compatibility with Open Air format (upload of files using Designer).
  • Display of restricted areas in map
  • Adjustable warning vertical distance to a restriced area
  • Adjustable warning horizontal distance to a restriced area
  • Display of shortest Vertical, and Horizontal, distance to restricted area
  • Resctrited area alarms (Altitude imminent, Position imminent, Violation, …)
  • Critical Airspace page (displays information about areas that are closer than a defined distance)
  • Worldwide Airspace database (SD card required) ( more info).

Cross Country Features


  • Exclusive Thermal Ball indicator
  • Several specific data fileds like Distance to take off, current and avarage glide ratio, avarage speed, etc.
  • Distance to last thermal indexed with altitude
  • Goto waypoint
  • Multiple waypoint route
  • Wind Speed and Direction (GPS based calculations)
  • Automatic altitude gain profiler
  • Nearby Landings (Displays Required Glide Ratio and distance to all the Landings which can be reached)

Route Features


  • Several Glides Ratios (average, to next,…)
  • Easy route definition
  • Route Navigation, configurable safety/risk margin on turn points.
  • Route Map (trace with thermal indication)

Interfacing


  • Compatible with MacOS (10.13 and higher), Windows (8/10/11)
