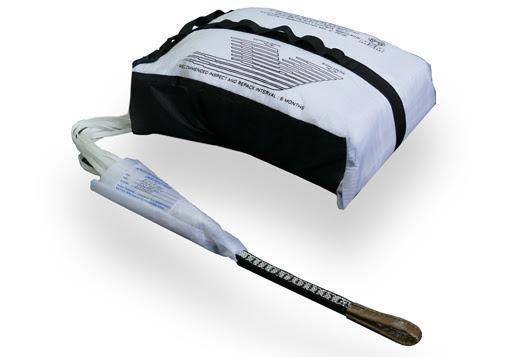

Apco MAYDAY PP 20
Apco Mayday PP 20 (160 kg)
5 800,00 SEK
- Artnr: 60811
- Ej i lager
Beskrivning av artikel
| Mayday | MD SQ | MD 16 | MD 18 | MD 20 | MD Bi |
|---|---|---|---|---|---|
| Type | Square Parachute | PDA - (Pulled Down Apex / Inverted Apex Round Parachute | |||
| Area [m2] | 25 | 23 | 30.4 | 37 | 48 |
| Gores | N/A | 16 | 18 | 20 | 18 |
| Weight [kg]** | 1,010 | 1.890 | 2.220 | 2.690 | 3.250 |
| Packed Volume [cc] | 3000 | 4000 | 4950 | 5400 | 6100 |
| Packed Size [cm] Length x Width x Height |
20.0 x 19.0 x 8.0 | 28.5x23.0x14.0 | 32.0x22.5x15.0 | 32.0x23.0x13.0 | 33.5x27.0x13.5 |
| Max Load[kg] | 120 | 106 | 120 | 160 | 200 |
| Sink Rate m/sec* | 5.4 | 6.3 | 5.4 | 5.4 | 5.4 |
| Stability (1 - 5) | 5 | 5 | 5 | 5 | 5 |
| Gr. per kg. load | 9.16 | 17.83 | 18.5 | 16.85 | 16.25 |
| Canopy Material | PN9 | PN4 | PN4 | PN4 | PN4 |
| Lines | Dyneema | Nylon 180kg | Nylon 180kg | Nylon 180kg | Nylon 180kg |
| Bridle Type | Short Dyneema | Short Dyneema | Short Dyneema | Short Dyneema | Long Double Bridle to connect to Spreaders |
| Compatible with Light Hang Glider Reserve Bridle (43006) | Yes | Yes | Yes | Yes | No (Instead order 43002L) |
| Certification | EN | DHV | SHV | AFNOR/CEN | AFNOR |
| * As measured by Air Turquoise test laboratory Stability rating by Air Turquoise (1 bad - 5 excellent) |
|||||
| ** Excludes weight of long bridle on Hang-glider version. Add 550gr for bridle |
|||||
| Packed Size vs. Volume: The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements. The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco. |
|||||
