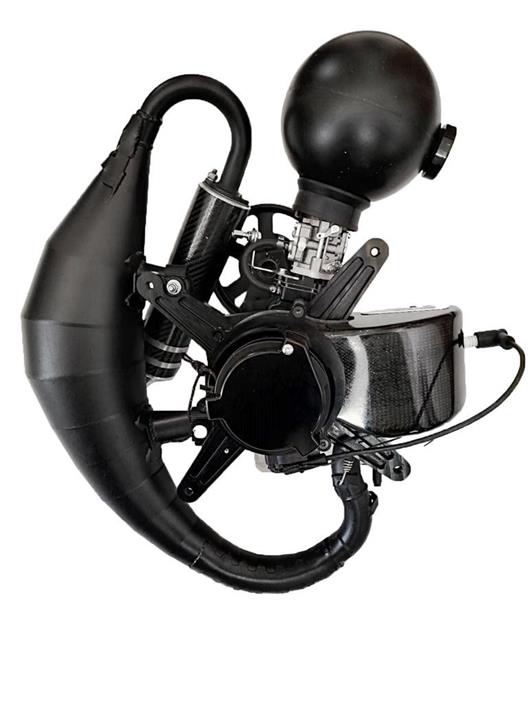

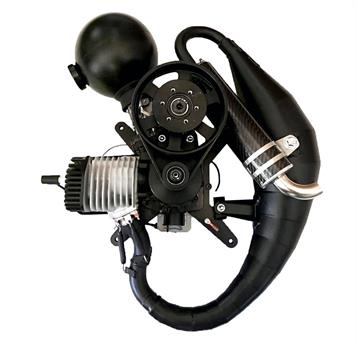

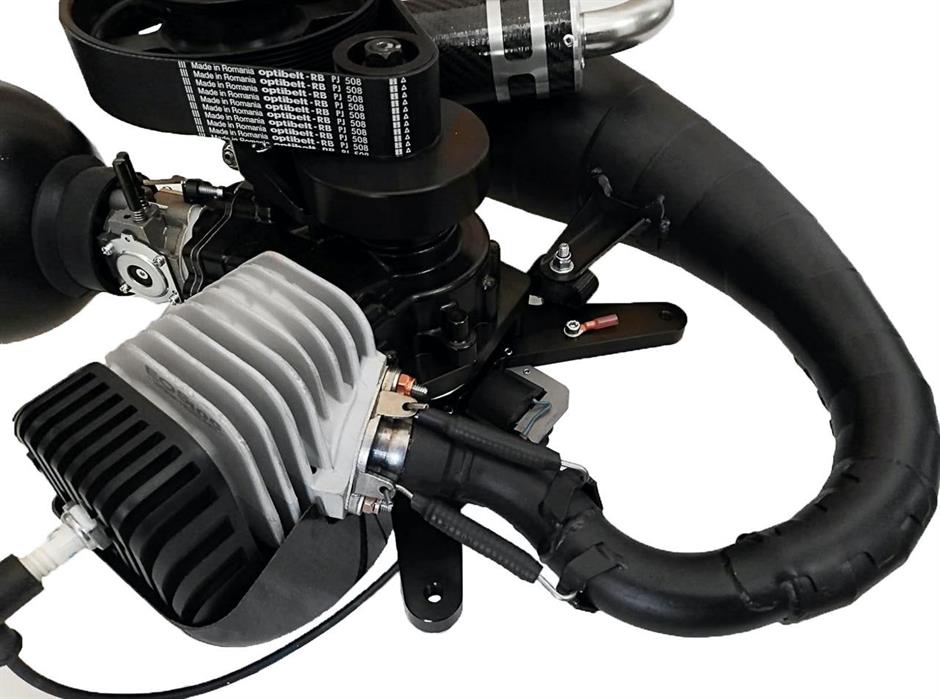

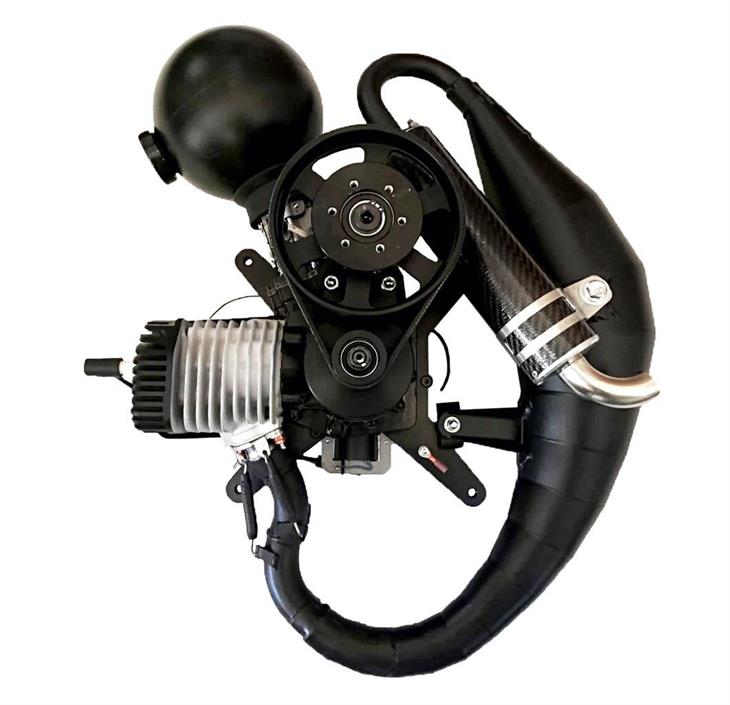

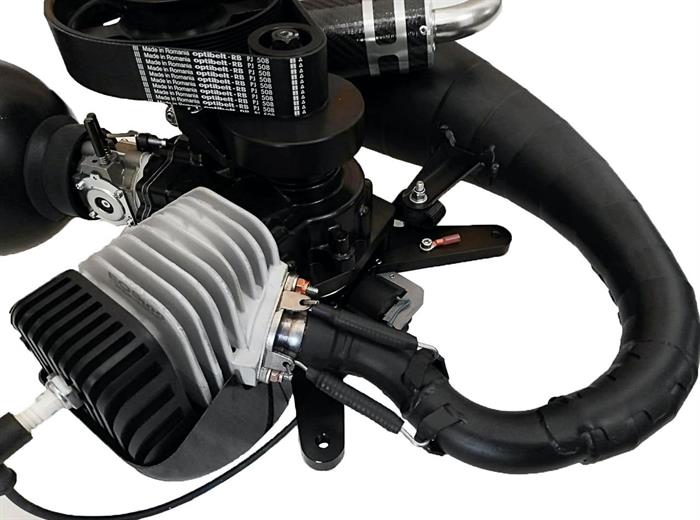

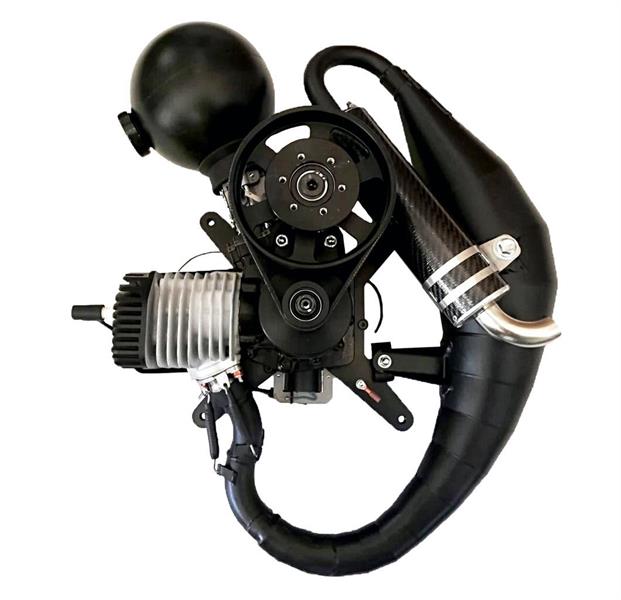

The new EOS 100 ICI RV5 ! The RV5 is the fifth generation of this engine and since first launched in late 2013 the concept has undergone several amendments and now has reached finest quality and reliability. EOS 100 - EOS 100 Booster - EOS 100 Booster ICI - EOS 100 ICI mod. 2019 - now: EOS 100 ICI RV5
The engine features with:
Lightweight & compact construction The very light engine is built small, nicely and compact with the use of only highest quality materials. Well manufactured in all details by the use of most modern techniques with a smart constellation of components which are perfectly working together.

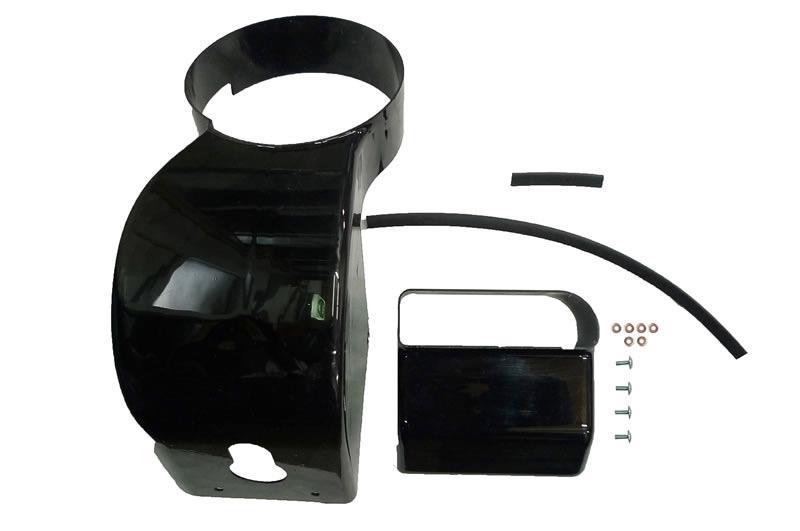

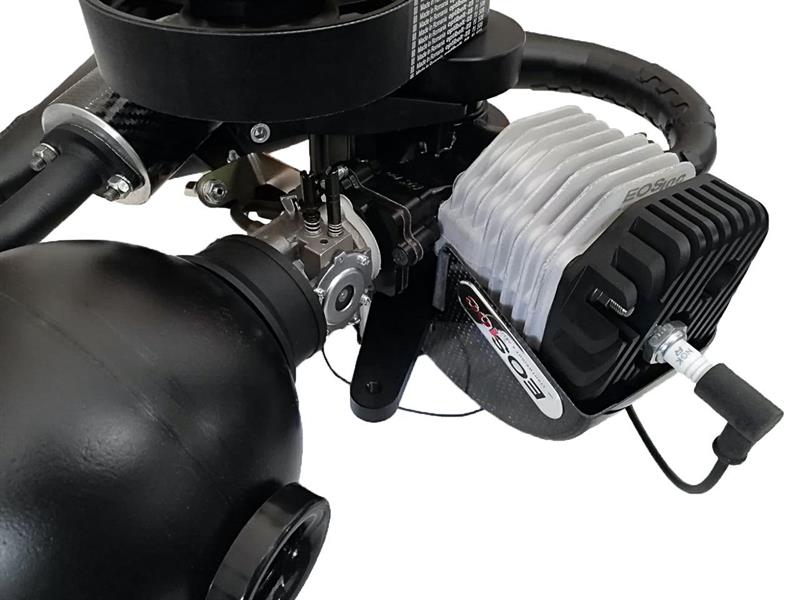

Optimum operation The engine is easy to start up, with a smooth and constant run at idle. The well adjusted carburetor together with the unique HIFLOW-SHOT air box care for an even run in all revolutions. Perfectly balanced crankshaft, fly wheel and shafts care for a low vibration. The fan cooling in combination with the partial Carbon cover prevents the engine against overheating and allows long duration runs at full power.
Power & thrust Considering the small size and very low weight, the moderate compression ratio for a durable and long life span, the small displacement, the engine gives an optimum thrust and astonishing power. By additional improvements the new EOS 100 ICI RV5 generates more thrust and power than former models.
Reliable quality The well proven engine concept and the use of highest quality materials and components, the best workmanship and accurate engine assembly, all grant for a highest quality product and reliable engine run throughout a long period of operation.
ICI ignition system
Advanced exhaust system. BLACK heat res. paint.
With either standard pull hand starter or optional with the advanced EASY-STARTER.
EOS 100 ICI RV5 - lightweight & reliable power!
engine
one cylinder 2 stroke
displacement
102cc
stroke
45mm
bore
54mm
compression ratio
1:10,20
gear ratio of belt drive
1:3,5
carburetor
membrane Walbro WG8
spark plug
NGK BR9HS, B9HS, BR10HS, B10HS
power
21,6HP (15,9KW) at 9500RPM
thrust
>57kg / >61kg 125cm / 130cm prop
starter
rope hand starter / EASY-STARTER
cooling
partial fan cooling
average consumption
3 - 3,5l/h
fuel inlet
membrane, fiber Reed valve
air inlet
HIFLOW-SHOT air box
fuel recommendation
unleaded 98 Octane
fuel mixture
2%
2-stroke oil
full synthetic
weight (w.o. exhaust)
7,26kg
weight (with exhaust - all complete)
9,9kg
exhaust
high temp. resistant paint, Carbon silencer
max. build-in length
21cm
dimensions
57x34x25cm
propeller recommendation (rotation anti clockwise) diameters 125cm or 130cm
